TOROIDAL CORE WINDING COILS

Toroidal core winding coils process using toroidal winding machines and turn of core's refer to a customer specifications.

Application : Toroidal core winding coils are used in Current Transformer Products (CT)

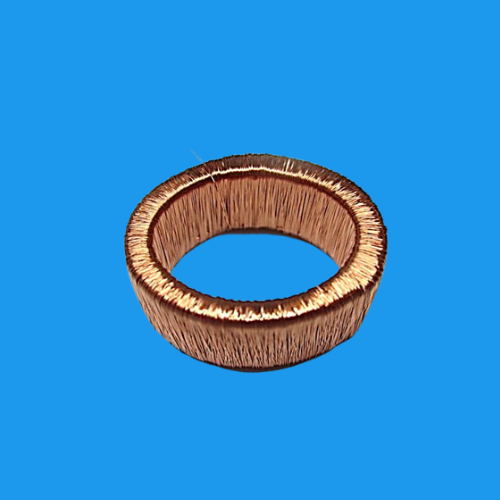

OVAL CORE

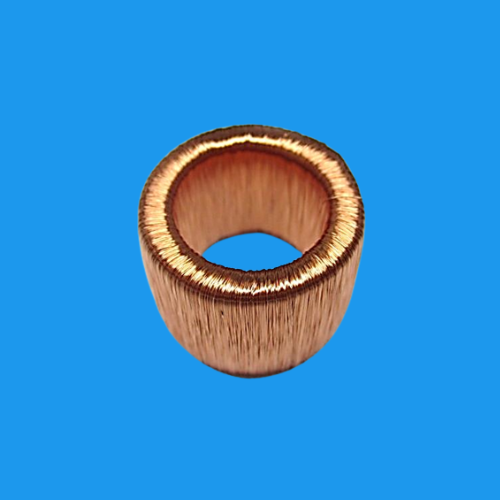

ROUND CORE

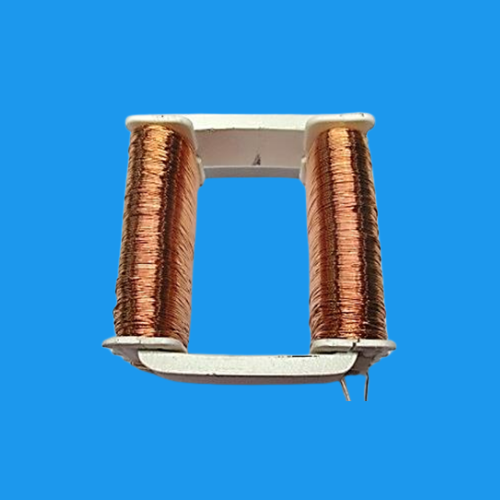

RECTANGULAR CORE

No Of Turn & Dim M. Wire

No.	MODEL	Requirement
No.	MODEL	Winding Turns	Ø Wire
1	1000CT	1000 ± 2 turn	Grade 1, 2UEW Ø 0.10 mm
2	CT 06	2000 ± 2 turn	Grade 1, 2UEW Ø 0.09 mm
3	CT 13-1	1000 ± 2 turn	Grade 1, 2UEW Ø 0.09 mm
4	CT 13-2	2000 ± 4 turn	Grade 1, 2UEW Ø 0.09 mm
5	CT 12-1/2/3	1970 ± 4 turn	Grade 1, 2UEW Ø 0.10 mm
6	CT 12-3 (ZCT)	300 ± 1 turn	Grade 1, 2UEW Ø 0.20 mm
7	CT 27	2000 ± 4 turn	Grade 1, 2UEW Ø 0.10 mm
8	CT 24 T	1280 ± 2 turn	Grade 1, 2UEW Ø 0.18 mm
9	CT 14-1/2	2000 ± 4 turn	Grade 1, 2UEW Ø 0.10 mm
10	CT 14-1 (ZCT)	300 ± 1 turn	Grade 1, 2UEW Ø 0.20 mm
11	CT 24-1/2	1280 ± 2 turn	Grade 1, 2UEW Ø 0.18 mm
12	CT 24-2 (ZCT)	300 ± 1 turn	Grade 1, 2UEW Ø 0.20 mm
13	CT 15-1	2000 ± 4 turn	Grade 1, 2UEW Ø 0.08 mm
14	CT 15-2	1000 ± 2 turn	Grade 1, 2UEW Ø 0.09 mm
15	CT 16-2/3	1000 ± 2 turn	Grade 1, 2UEW Ø 0.09 mm
16	CT 16-4	2000 ± 4 turn	Grade 1, 2UEW Ø 0.08 mm
17	CT 30A	4000 ± 10 turn	Grade 1, 2UEW Ø 0.08 mm
18	CT 40	1000 ± 2 turn	Grade 1, 2UEW Ø 0.12 mm
19	NR11	500 ± 2 turn	Grade 1, 2UEW Ø 0.10 mm
20	2CT / 3CT (75:5)	15 turn	1PEW Ø 0.90 mm
21	2CT / 3CT (100:5)	20 turn	1PEW Ø 0.90 mm
22	2CT / 3CT (150:5)	30 turn	1PEW Ø 0.90 mm
23	2CT / 3CT (200:5)	40 turn	1PEW Ø 0.90 mm
24	2CT / 3CT (300:5)	60 turn	1PEW Ø 0.90 mm
25	2CT / 3CT (400:5)	80 turn	1PEW Ø 0.90 mm
26	SR – 1CT (100:5)	20 turn	1PEW Ø 0.90 mm
27	SR – 1CT (150:5)	30 turn	1PEW Ø 0.90 mm
28	SR – 1CT (200:5)	40 turn	1PEW Ø 0.90 mm
29	SR – 1CT (300:5)	60 turn	1PEW Ø 0.90 mm
30	SR – 1CT (400:5)	80 turn	1PEW Ø 0.90 mm
31	ZCT – 35	130 ~ 133 turn	1PEW Ø 0.90 mm
32	ZCT – 80	130 ~ 133 turn	1PEW Ø 0.90 mm
33	ZCT – 120	130 ~ 133 turn	1PEW Ø 0.90 mm
34	CT 06-2	1000 ± 2 turn	Grade 1, 2UEW Ø 0.09 mm
35	PMZ	2000 ± 4 turn	Grade 1, 2UEW Ø 0.10 mm
36	AFGF ADVANCED	1000 ± 2 turn	Grade 1, 2UEW Ø 0.09 mm
37	SSCT 24C-3	1280 ± 2 turn	Grade 1, 2UEW Ø 0.18 mm
38	SSCT 24 CTL	1280 ± 2 turn	Grade 1, 2UEW Ø 0.18 mm
39	SSZCT 15-1	600 ± 2 turn	Grade 1, 2UEW Ø 0.20 mm
40	3CT-N Ass’y (75:5)	15 turn	1PEW Ø 1.00 mm
41	3CT-N Ass’y (100:5)	20 turn	1PEW Ø 1.00 mm
42	3CT-N Ass’y (150:5)	30 turn	1PEW Ø 1.00 mm
43	3CT-N Ass’y (200:5)	40 turn	1PEW Ø 1.00 mm
44	3CT-N Ass’y (300:5)	60 turn	1PEW Ø 1.00 mm
45	3CT-N Ass’y (400:5)	80 turn	1PEW Ø 1.00 mm
46	ZCT-35 Core	130 ~ 133 turn	1PEW Ø 0.90 mm
47	ZCT-80 Core	130 ~ 133 turn	1PEW Ø 0.90 mm
48	ZCT-120 Core	130 ~ 133 turn	1PEW Ø 0.90 mm
49	TS 2P	1695~1705 turn	Grade 1, 2UEW Ø 0.09 mm
50	TS 3P	1695~1705 turn	Grade 1, 2UEW Ø 0.09 mm
51	3CT-N Ass’y Wide Range	2000 ± 4 turn	Grade 1, 2UEW Ø 0.26 mm
52	GN 15	1300 ± 2 turn	Grade 1, 2UEW Ø 0.09 mm
53	GN 33	1980 ± 4 turn	Grade 1, 2UEW Ø 0.08 mm
54	GN 33Z	1000 ± 2 turn	Grade 1, 2UEW Ø 0.11 mm
55	H 2CT	1700 ± 5 turn	Grade 1, 2UEW Ø 0.09 mm
56	H 3CT	1700 ± 5 turn	Grade 1, 2UEW Ø 0.09 mm
